Shenzhen XHL Industrial Development CO., LTD is a Proffesional Manufacturer of All-in-one LED Strip Silicon Extrusion machine .
This production line mainly produces silicone waterproof LED soft light, its principle is to make the LED strip be wrapped with a layer of silica gel automatically, and make the LED soft light strip waterproofed. This production line can achieve solid core (potting), tubular (casing), half tubular (potting shape), double-color neon lights and so on products. The thickness, shape of the silicone layer can be customized accordingly to users' and optical requirements.
| ITEM | SPEC |
| Screw Diameter | 65mm |
| Screw and Shell Material | 38CrMoAl |
| Compression Ratio | 2.5:1 |
| Thread Specification | Linear thread, not equal to the same distance |
| Gearbox | Special designed gearbox for silicone extruder |
| Motor | High Efficiency Variable Frequency Motor |
| Frequency Converter | High performance vector converter |
| Maximum Extrusion | >35KG/H |
| Power | 11.5kw |
| Rotating Speed | 50rpm Max |
| Dimension | 1500*700*1250mm |

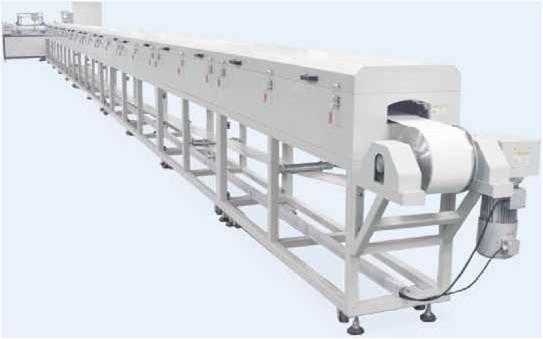

| Model | XHL -HW2000-250 1 |
| Power Supply | 380VAC 50HZ |
| Dimension | 2000*460*1250mm |
| Max Power | 4.8KW |
| Temperature | 250¥ |
| Heating Speed | (25-200°C)<5MIN |
| Conveyor Belt | Teflon, Stainless steel |
| Speed Mode | Frequency |
| Tunnel Material | Inner layer 304 stainless steel, outer layer high-strength sheet metal for baking process (can be made of all stainless steel) |
| Insulation Material | Glass fiber |
To make the strip surface coated with a layer of surface treatment agent, so that silica gel and strip can be solid bond together
Bottom coating amount: 0.3-0.5g/M (depends on the number of lamp beads, plate width, solid core and hollow core products) Coating method: atomized coating
Length 800*Width 400 *Height 1500mm
| Model | XHL-630 |
| Working Diameter Range for Reel | 350-630mm |
| Power Supply | 220V/50HZ |
| Rotating Speed | 60rpm max |
| Weight Capacity | 40 kg |
| Sensing Method | Infrared reflection induction |
| Motor | 200W |
Cooling method: air-cooling
Power Supply: AC 380V 50Hz
Power Consumption: 2600W
Working capacity: At the same time to load 1*
Refine machine, and 2*Extrusion Machine
Length 1200 * Width 600 * High 1100mm
| Model | XHL-9C |
| Power Supply | 380VAC /50HZ |
| Dimension | 2800* 1300*1400mm |
| Roller Diameter | 230mm |
| Power | 11KW |
| Maximum Spacing | 10mm |
| Rotating Speed | 18rpm |
| Cooling Method | Water cooling |
Remarks :
1)We can customized all non-standard machines according to your requirement;
2)Test sample free and one year quality assurance;
3)We offer training : door to door service , Vedio action with professional after-sales staff; ( Note : If you need us install and training in your country and factory , please offer the relative personnel costs , or ,if you come to our factory to train , please inform us 7 days in advance )
4)Welcome to cooperate with you sincerely !
|
|
XHL-LSE01 All-in-One LED Silicon Strip Extrusion production Line 6565 5065 Images
|
